NOTE: IKON2 works with SPM4651T. You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website).

If you want to make an adaptor by yourself, please check the link and go to the FAQ and looking for the Q #26.

https://www.msh-electronics.com/faq/

------

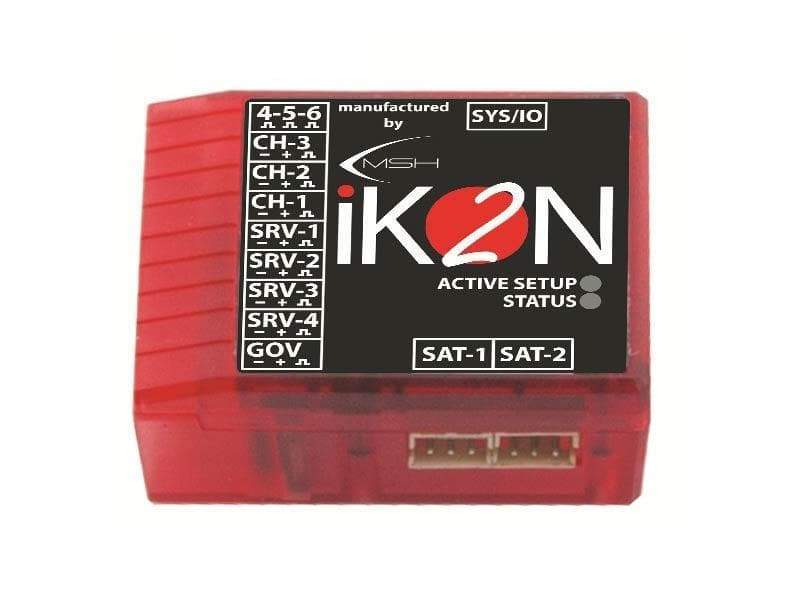

iKON 2 Flybarless System - The Legend Continues.

The flybarless unit is the heart and soul of the beast at play - a singular device that will effect and influence every nuance of flight. When it comes to choosing the flybarless controller for your needs, nothing is more critical when it comes to the way your aircraft will fly.

Tried, true and ultimately proven like no other flybarless unit on the market today, iKON takes the ultimate next step with the all new iKON 2 Flybarless System From here, everything changes.

Mature and all grown up, the iKON 2 features an all new Rescue Mode feature, providing the safety net we all need when pushing the boundaries of flight. Just as before, the Rescue Mode will rapidly auto level the aircraft from any orientation the moment you flip the switch, but for an added flair, an increase in collective pitch will automatically be applied to arrest the descent rate that is no doubt taking place.

Representing a new leap in flybarless control, MSH has tirelessly toiled to fine tune the iKON2 to the ultimate perfection. Every aspect of the hardware and firmware has been fine-tuned and optimized, and in the end, we can honestly state this system has no other equal on the market today.

Incorporating a faster CPU with built in hardware acceleration features, the iKON line has grown into multiple units that are ready and waiting to perfectly match your aircraft of choice. From integrated Bluetooth options, Micro and Mini versions, and a Heavy Duty unit, iKON has brought forth an entire lineup of amazing flybarless systems that are ready to alter your flybarless experience.

Flown like no other, and pushed harder, faster and lower, the iKON has made its mark as one of the most flexible, functional and easy to use systems available today. But don't take our word for it - step into the all new iKON 2 Flybarless System, and change the way you fly.

Vibration Resistant - Bad Vibes Goodbye.
Flybarless systems hate vibrations - they really do. These vibrations can cause flight control issues, unpredictability, and in extreme cases, cause a crash. With the iKON 2 Flybarless System, we have you covered. The iKON2 uses state of the art vibration dampening systems that keep vibrations in check, equating to one epic flight after another.

Simplified Setup - The Wizard Has Arrived.
Nothing is more irritating, frustrating and time consuming than fumbling with manuals, setup videos and tech help when it comes to proper flybarless setup. No more - the wizard takes control.

Utilizing an easy to follow, fuss free setup, the iKON 2 Flybarless System takes a simplified approach to flybarless setup, allowing you to spend less time tuning and more time flying - just the way it should be.

All New Rescue Mode - Ready and Waiting To Save the Day.
Pushed it just a "bit" too hard with that last maneuver? Still learning 3D flight? Looking for just a touch more security while flying? With the iKON 2 Flybarless System, Rescue Mode technology is a flip of a switch away - saving you (in style, we might add) from a sickening and costly crash that none of us ever wants to see.

When Rescue Mode is engaged, the iKON 2 instantly auto levels the aircraft from any orientation, and for added flair, increases collective pitch to arrest the decent rate that is no doubt taking place. This aggressive rescue feature adds an entire new layer to helicopter flight - keeping your aircraft safe, and your bank account a much happier place.

Satellite, XBus & S-Bus Ready - It's All Up To You.
Offering the convenience of satellite technology, the iKON 2 Flybarless System supports Spektrum DSM2 & DSMX satellite receivers, JR XBus, along with S-Bus technology via Futaba. On the Spektrum side, (2) satellite ports are offered for maximum redundancy & path diversity.

Built in Governor - Ready to Manage Your Flights.
Utilizing a transmitter selectable governor, the iKON 2 brings compact flybarless technology to every level of the helicopter, allowing you to dial in that perfect rotor speed that suits your style - all at the flip of a switch.

Incorporating a selectable (3) switch flight mode program, the iKON 2 Flybarless System allows you to dial in your helicopter with fully adjustable flight mode parameters to obtain the very best from every flight. No more ancillary devices needed on your machine - the iKON 2 handles it all.

Polarity Protection - Keeping Things Safe.
No fear awaits you when it comes to powering up the iKON 2. With the iKON2, polarity protection is built in with all pins polarity protected. Simple and effective, without any nasty surprises.

Event Logging - Stay In the Know.
Incorporating full high resolution logging capability using on board non-volatile memory, the iKON 2 Flybarless System takes logging to the next level via an incredibly useful and meaningful way.

With event logging, the iKON 2 Flybarless System allows high level review of every flight, making it easy to diagnose issues at play. Further this with full vibration logging via (3) discreet axis', the iKON2 offers complete playback of all vibrations and logging support in real time. It's just that easy.

Real Time Telemetry Perfection: (click here for detail)

- Fuel Gauge Technology

No more guessing when it comes to power available throughout your flight. With the Fuel Gauge, you can push the limit of flight time to the very last second, all the while keeping your batteries in perfect health, no matter how hard you fly.

- Low Battery Alert

Depending upon the compatibility of the transmitter in use, this feature alerts you when a discharged LiPo battery is connected to the aircraft, sparing the aircraft and battery from possible damage or failure.

- Onboard Data Logging

Augmenting or replacing the data logging capabilities of the ESC in use, this new feature allows you to access multiple flights worth of data logging capability when no such options are offered via the ESC in use. From cyclic & collective inputs, this data will be logged within the iKON2, and depending upon transmitter capability, can be viewed via the transmitter in use for instant updates or can be analyzed via PC.

- Thermal Overload Protection

Protect your investment with real time thermal data. Monitor ESC temps and set the appropriate alarms to avoid unexpected ESC thermal shut downs and possible ESC failure. With this all new feature, you can push your heli to the max without the worry of thermal overload.

- No Costs, No Extra Hardware Required

Simplified to the extreme, the above features require (1) single wire to connect the ESC to the iKON2, unlocking these amazing features. Simple & effective, this update requires nothing but the basics with no costs involved.

How to update your iKon to the latest software version

Note: most new features only available on the iKon2, but updates continue to optimize flight performance on all iKon's!

Be sure your PC is connected to the internet
Download and install the iKon software if you have not already done so //www.ikonflybarless.com/download
Power up your iKon (max 2s LiPo, watch polarity, and never apply power to 4-5-6/bind) and plug it into your PC using a micro USB cable - not included. If you see driver installation start, wait for this to complete.
Now start the iKon software. Be sure to accept any software updates, and then be sure to accept any firmware updates offered.
Your iKon should now be running the latest firmware version.

Specifications:

Dimensions	36.8mm x 29.6mm x 14.2mm (LxWxH)
Weight	12.2g
Power input	4,5V to 15V with one or two (redundant) lines from BEC or (2S minimum) Li-Po (7.4V) or Li-Ion (7.4V) or Li-Fe (6.6V) or 5/6/7 NiCd -NiMh
Application	Electric, Nitro, Gasser Compatible
Receiver Support	Spektrum: Bidirectional SRXL2 (with telemetry) / Bidirectional SRXL (with telemetry) / Unidirectional SRXL / DSM2 22mS / DSM2 11mS / DSMX 11mS / PPM / Remote RX Futaba: S.Bus2 (with telemetry) / S.Bus / PPM Jeti: EX-BUS (with telemetry) / UDI / PPM+ / PPM- Graupner: SUMD (with telemetry) / SUMO Multiplex: SRXL-12 / SRXL-16 + MSB (with telemetry) FrSky: S.Bus + Smart.Port (with telemetry) / F.Port (with telemetry) / F.Port2 (with telemetry) / F.Bus (with telmetry) / S.Bus JR: X-Bus A (with telemetry) / X-Bus B / DMSS Align: DMSS Hitec: S.Bus RadioLink: S.Bus TBS: Crossfire (with telemetry) / S.Bus / PPM ELRS Crossfire (with telemetry) FlySky: i-Bus PowerBox: P2Bus (with telemetry) / SRXL-16
Telemetry input	From ESC on electric models: Castle Creation / Hobbywing / Align / Scorpion / Kontronik / YGE / Spektrum / FrSky / OMP / ZTW / ZDFly / Graupner From Temperature sensors on Nitro / Gasser / Turbine models: Jeti / Futaba From RPM Sensors: All sensor brand (Possibility to monitor separately also the RPM of the tail motor) From Variometer (Altitude, Vertical Speed): Jeti on SAT2 connector / FrSky / Futaba / Robbe / Graupner sensors on Bus Quality Of Signal (QOS) received: For all receivers brand Quality of Servo Voltage input: For all kind of Power input: ESC BEC, external/separate BEC, Lipos/Li-Ion/Li-Fe/NiCd/NiMh, Backup Power Systems
Telemetry output	Spektrum / Futaba / Jeti / Graupner / Multiplex / OpenTX / EdgeTX / Ethos / TBS / ELRS / JR / PowerBoxSystem / FlySky
Cyclic Servo Support	760us/ 1520us - Up To 560Hz Frequency
Tail Servo Support	760us/ 1520us - Up To 560Hz Frequency
Governor	Support: Electric, Nitro, Gasser Governor range: 800-6500 RPM Autorotation Bailout function: Supported

Features:

New 4X faster CPU
Latest Gyro Technology for Superb Performance
Jeti Transmitter Integration (Coming In Mid 2016)
Vibration Cancellation Technology
Easy Setup via Built In Wizard
Separate Receiver Support, Futaba S-Bus & Spektrum DSMX & DSM2
Dual Spektrum Satellite Ports for Maximum Path Diversity
Built In Governor
Multiple Flight Modes Available - Transmitter Adjustable via Multi-Position Switch
All New Rescue Mode Technology
Firmware Updates Available via PC
Full Event and Vibration Logs
Flight Mode Status LED Light
Onboard Mini USB Connector

Included:

(1) iKON2 Flybarless Flight Controller
(1) Adhesive Vibration Isolation Mounting Pad
(Micro USB Cable Not Included)

iKon Firmware Version 3 Features

Note: Most new features only available on the iKon2, but updates continue to optimize flight performance on all iKon's! Some features require an iKon/iKon2 with governor functionality.

All New Updates for the iKON2!

Always pushing the boundaries, iKON2 flight controllers now have access to all new capability & functionality via the latest iKON firmware update, allowing you to unlock even greater potential for the best flybarless system on the planet!

Free and feature packed, the iKON2 firmware update features the below updates:

Fuel Gauge Technology

Low Battery Alert

Onboard Data Logging

Thermal Overload Protection

No Costs, No Extra Hardware Required

Supported ESC's

Upon release, the iKON2 supports the below ESC's for data logging & telemetry capability, and as time progresses, more ESC's will be added to this list.

- Castle / Castle Live Link
- HobbyWing (V4 or Newer)
- Kontronik Jive / HeliJive
- Scorpion Tribunus (beta version at this time)

Supported Transmitters

Below is a list of the current transmitters supported in relation to the iKON2 data logging & telemetry. However, if your transmitter is not yet supported, please note you can easily access all data logging & telemetry via the iKON2 after subsequent flights.

- Spektrum
- Futaba
- Jeti

Transmitter Options

With Spektrum Gen2 (or newer) and Futaba transmitters, you are able to access & set the below functions to utilize in flight. Further, the iKON2 is now able to utilize SRXL for further telemetry options via receivers that offer this capability, such as the Spektrum SPM4649T dual diversity receiver.

- mAh Consumed via Battery Fuel gauge
- Temperature Threshold Alarms
- Live Current Draw

For Jeti Tx users, the iKON2 has the ability to send all logged parameter info, which can be viewed & logged via the Tx for greater levels of access & overview. From collective & cyclic inputs, gyro status, governor status, and iKON2 received frames, this all new update offers massive levels of user feedback and adjustments, such as remote access to governor features & more.

iKON2 Data Logging Capabilities

- mAh Consumed via Battery Fuel Gauge
- Current
- RPM
- LiPo Battery Voltage
- Voltage Ripple
- Receiver / BEC Voltage
- ESC Power Out

Jeti Tx Options

- RxRoll / RxElev / RxPitch / RxTail / RxThrottle / RxAux
- Setup Number
- SwashRoll / SwashElev
- Pitch Out
- Throttle Out
- Governor Engaged
- Rx Frame Rate
- Aileron Rotation Rate / Elevator Rotation Rate / Tail Rotation Rate
- Vibration levels (future update)

Event Logs

PC Software

New Rescue Function

Vibration Logs

250-300 Electronics

Price

Collections

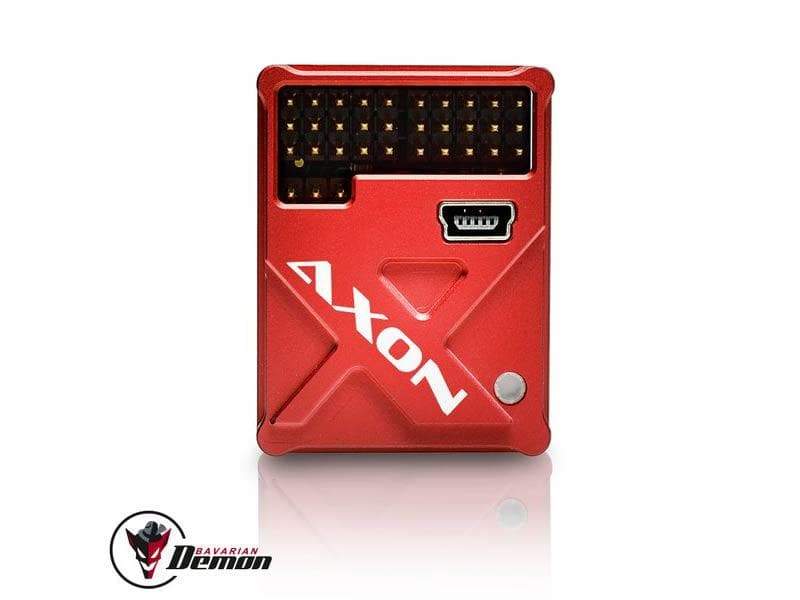

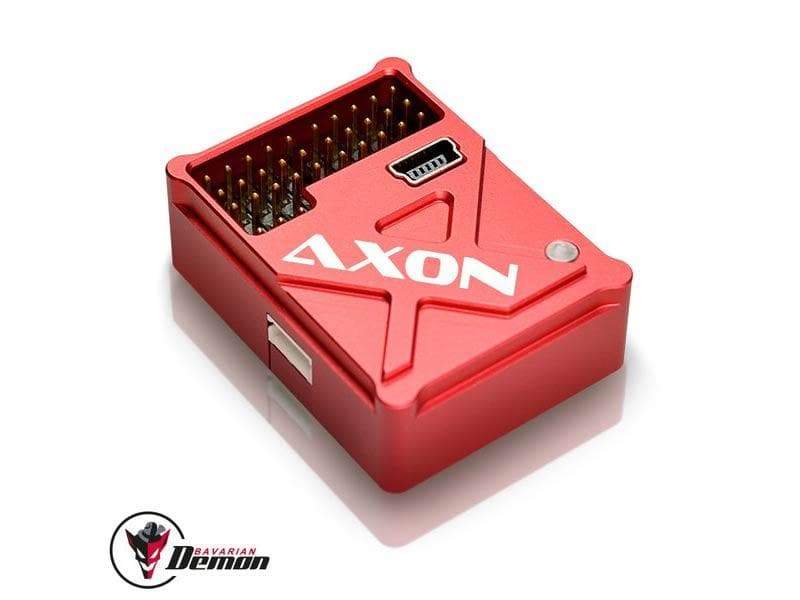

BavarianDEMON Axon

MKS Micro servo HV93

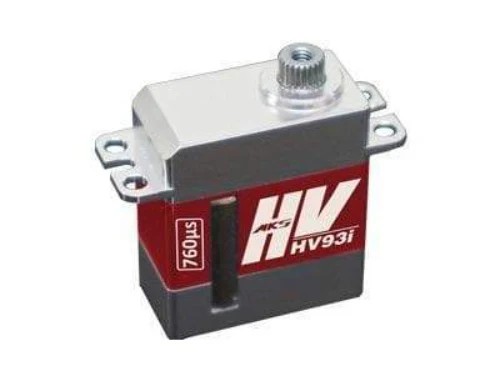

MKS Micro Tail Servo HV93I

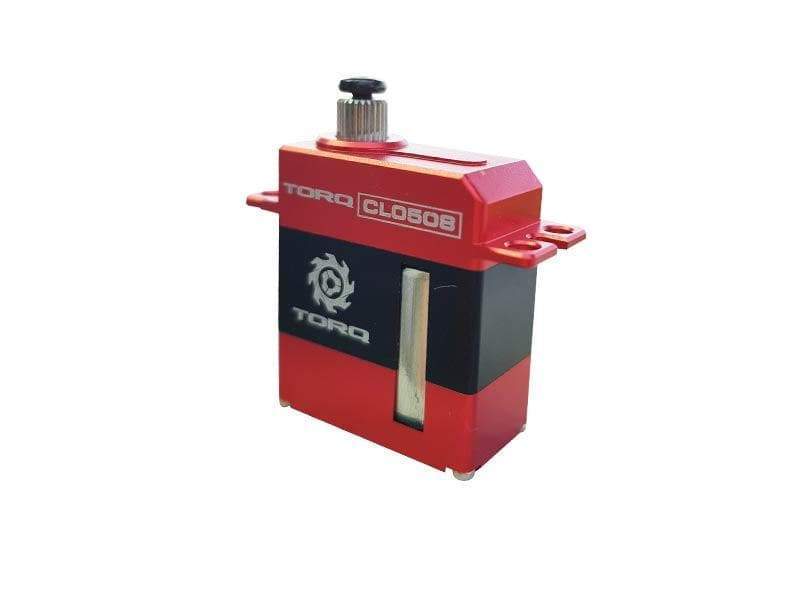

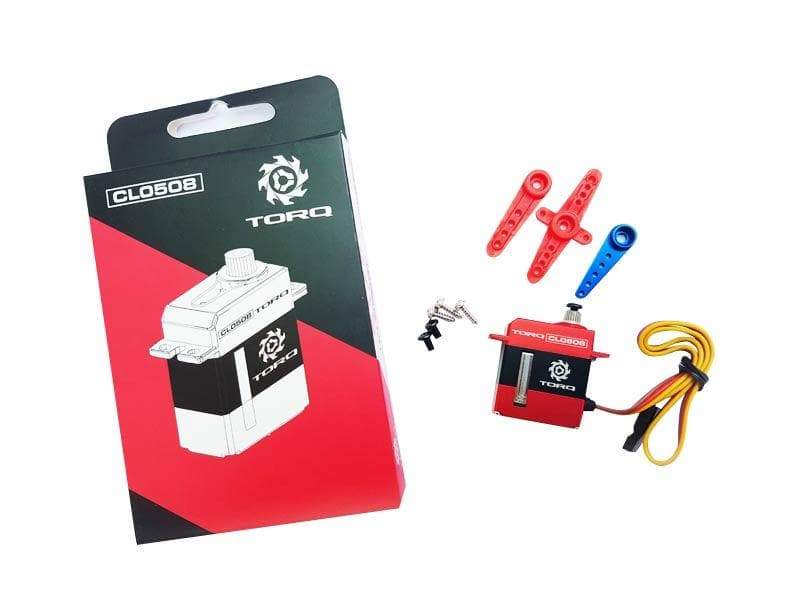

TORQ CL0508 Micro HV Servo

iKON 2 Flybarless System w/o Bluetooth (Micro USB Cable Not Included)

Microbeast 2 Flybarless System

Align DS450 Digital Servo Plastic Case

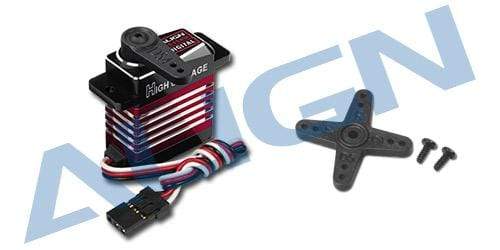

Align DS450M Digital Servo Metal CNC Case

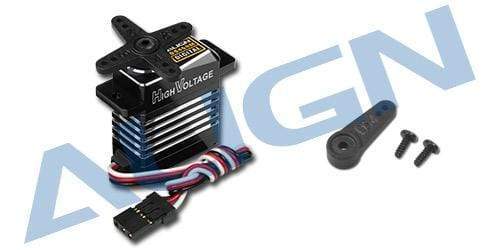

Align DS455M Digital Servo Metal CNC Case

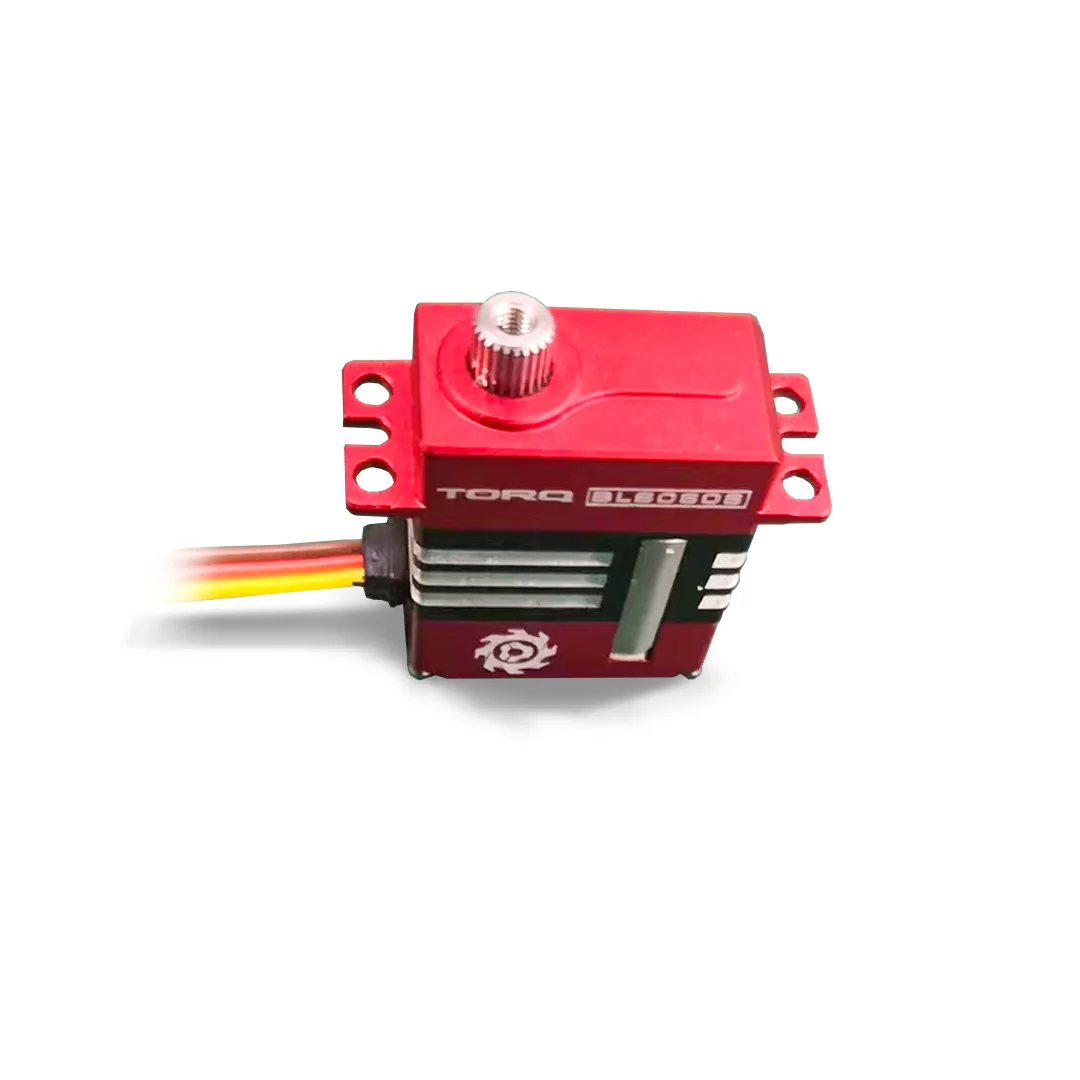

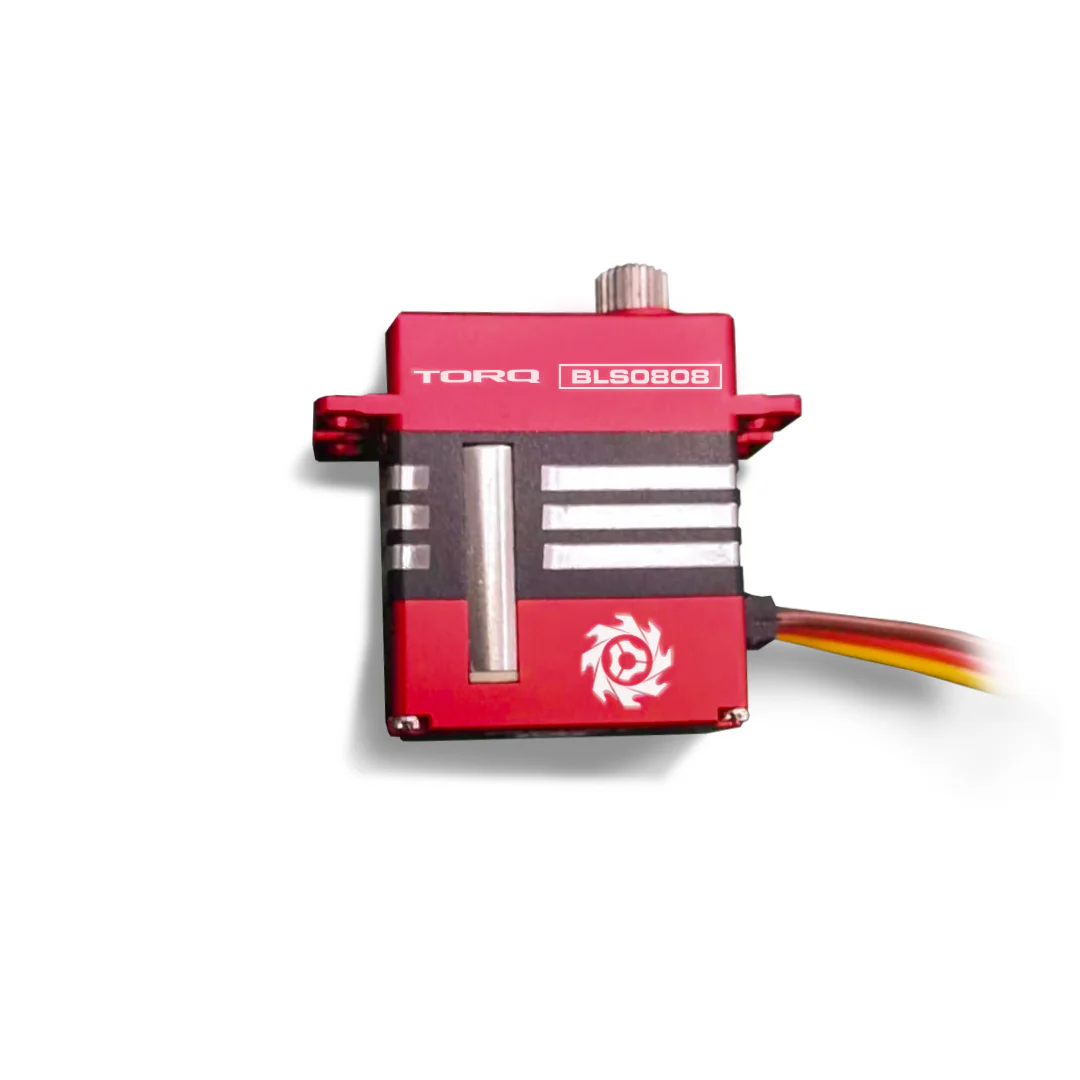

Torq BLS0808 Brushless Micro HV Cyclic Servo

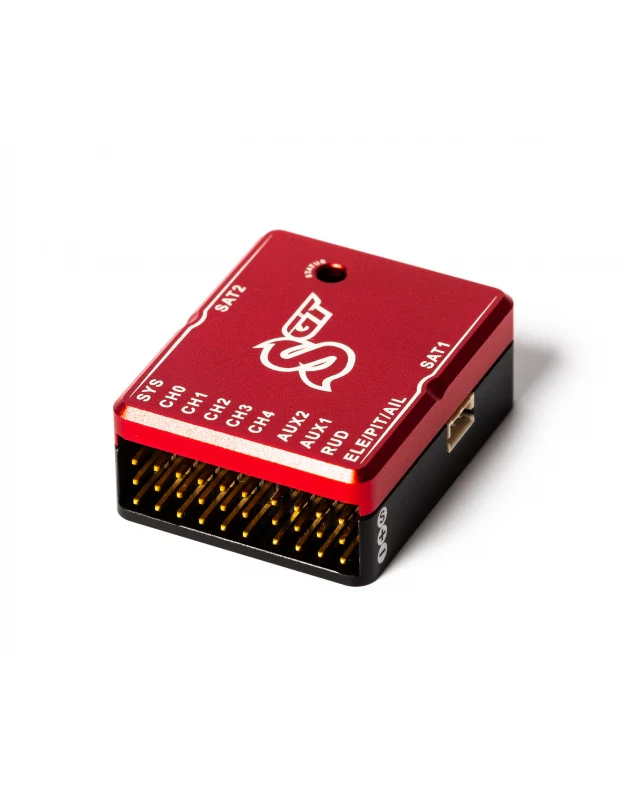

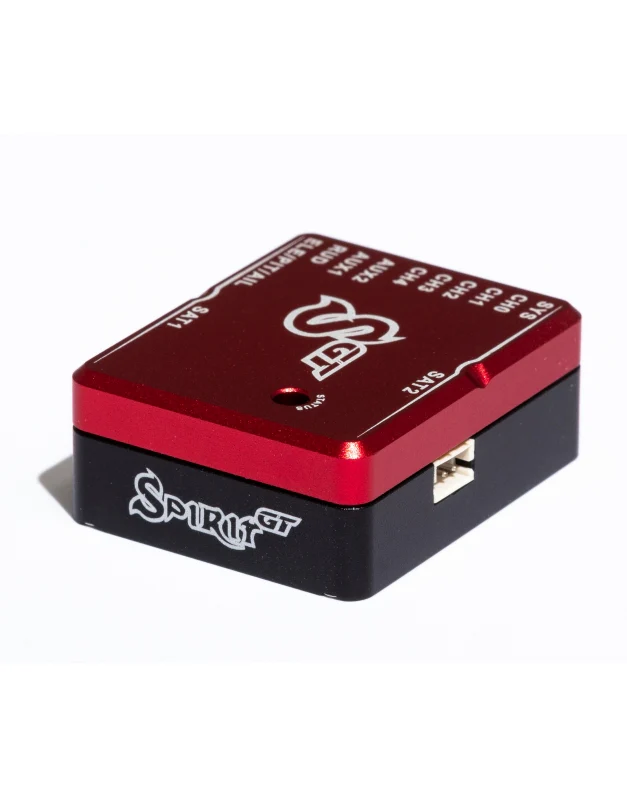

Spirit GT Flybarless System

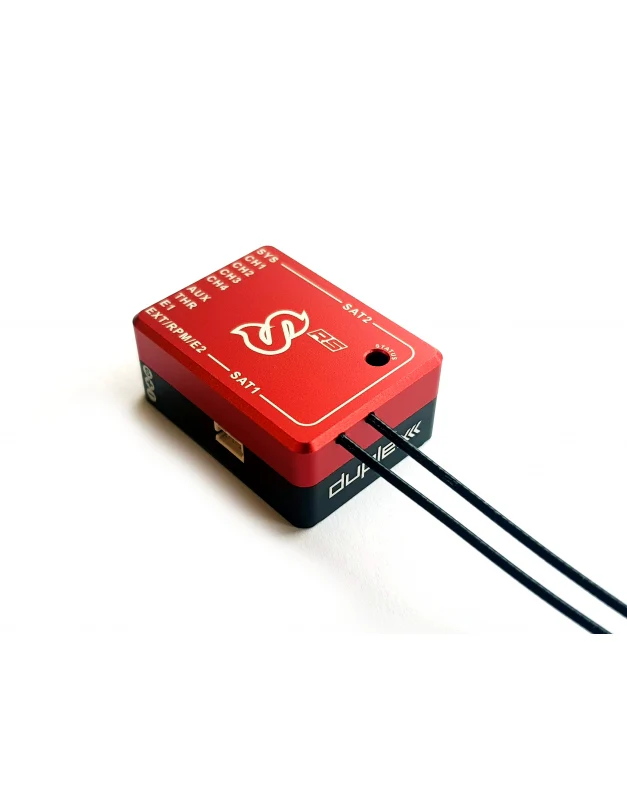

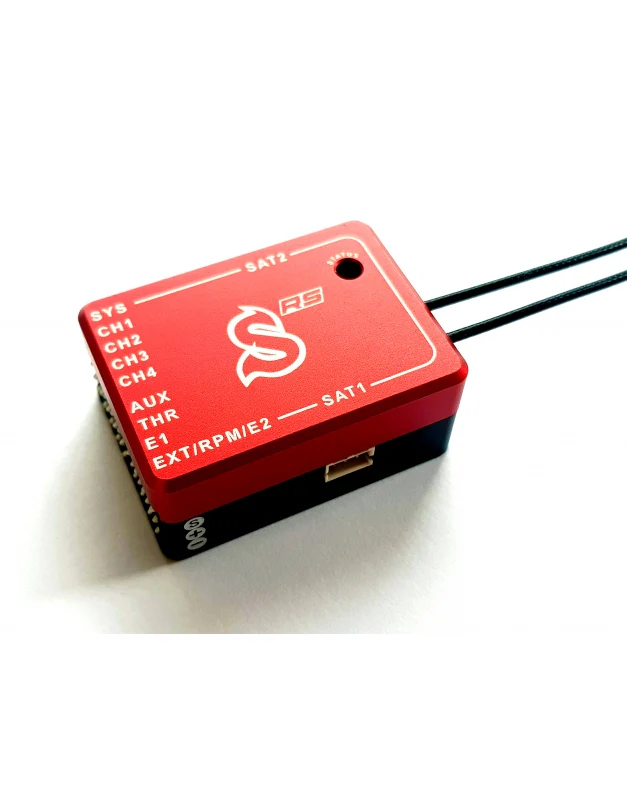

Spirit RS Flybarless System
