Furitek MicroModo SENSORED 2026

Brushless Outrunner Power System For

AXIAL SCX24

True Sensored Control for SCX24 Crawlers

Introducing the next evolution of MicroModo.

The Furitek MicroModo SENSORED 2026 Brushless Outrunner Power System is a complete redesign of our original MicroModo concept—now powered by a true sensored outrunner system that eliminates cogging, dramatically improves startup precision, and delivers absolute low-speed control for serious AXIAL SCX24 crawling.

This is not an incremental update.

This is the moment MicroModo transitions from sensorless brushless to true sensored performance.

What Makes MicroModo SENSORED a Game Changer

True Sensored Outrunner System

Unlike the previous sensorless MicroModo generation, the SENSORED 2026 system uses real rotor position feedback, allowing the ESC to precisely control motor timing from zero RPM.

The result is instant startup, zero cogging, and unmatched throttle resolution—exactly where SCX24 crawlers demand it most.

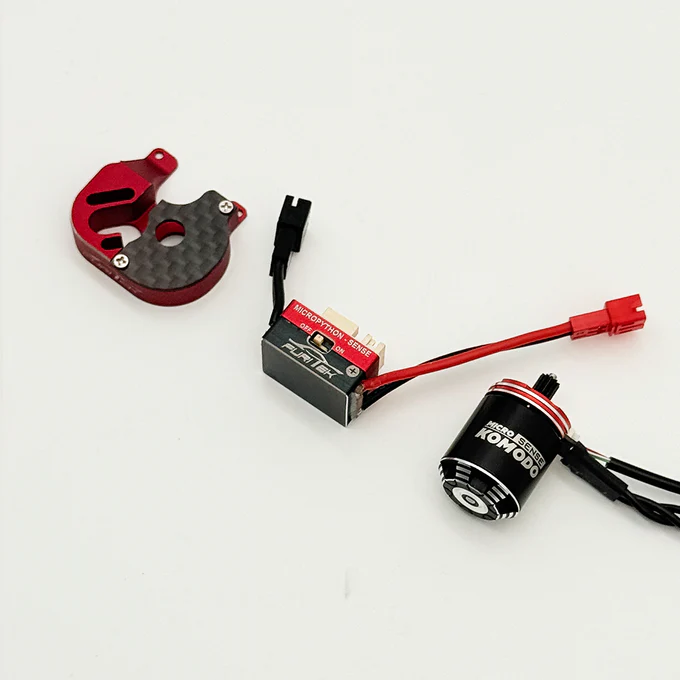

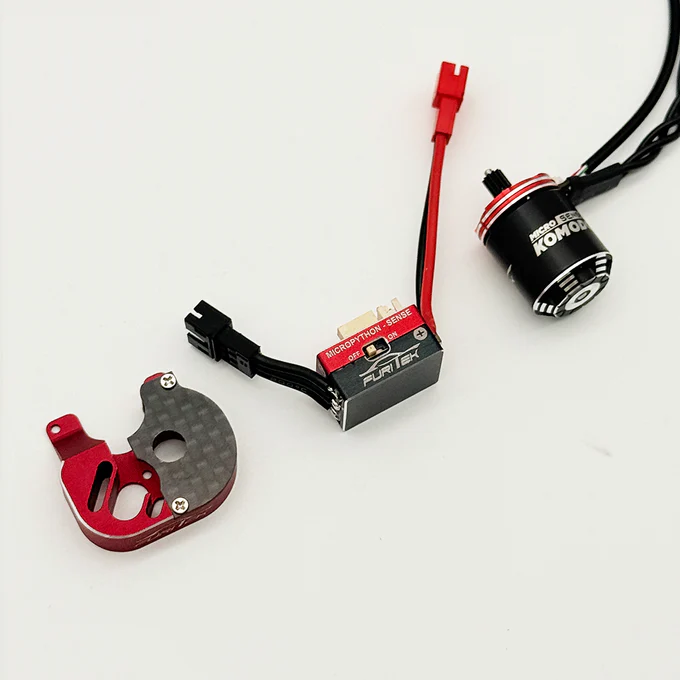

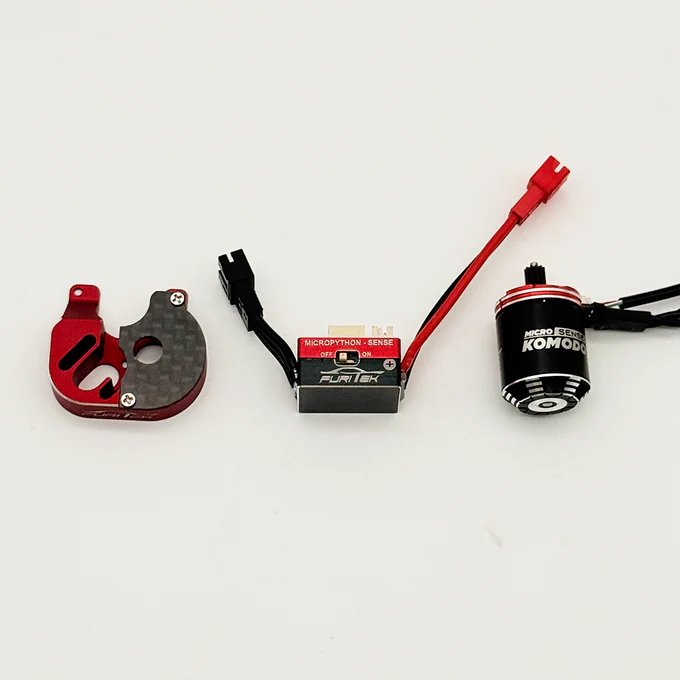

MicroPython Sensored ESC + MicroKomodo Sensored Outrunner Motor

This system pairs the MicroPython Sensored ESC with the MicroKomodo Sensored Outrunner Motor, engineered as a tightly integrated power unit. ESC and motor communicate continuously, maintaining smooth torque delivery even at ultra-low crawling speeds.

Designed Specifically for AXIAL SCX24

Every aspect of the MicroModo SENSORED system is tailored for the compact SCX24 chassis:

• Optimized footprint for tight installations

• Clean upward wire layout to maximize usable space

• Perfect balance of torque, efficiency, and thermal stability

This ensures a clean install and predictable performance on technical SCX24 terrain.

MicroModo SENSORED Key Features

• True Sensored Outrunner Architecture – eliminates cogging completely

• Ultra-Low Speed Precision – controlled, predictable movement at crawl speed

• FOC-Based Control Algorithm – smooth torque across the entire RPM range

• Instant, Jerk-Free Startup – no hesitation, no stutter

• Ultra-Compact ESC + Motor Combo – purpose-built for SCX24

• Upward Wire ESC Design – clean routing, easy installation

• High-Power 5A BEC – drives high-torque servos effortlessly

• Plug-and-Tune via Furicar App – real-time tuning and telemetry

Why Sensored Matters (Sensorless vs Sensored)

The original MicroModo sensorless system delivered strong brushless performance.

However, sensorless control inevitably struggles during the transition from ultra-low speed to normal operating RPM, where rotor position must be estimated instead of measured.

This often results in momentary hesitation, torque ripple, or uneven throttle response as the ESC switches control modes.

MicroModo SENSORED changes this completely.

With true rotor position feedback, the MicroModo SENSORED system maintains continuous, precise control from super-low speed through normal driving speeds, without any disruption or handoff artifacts.

• Seamless transition from crawl speed to normal speed

• No torque drop or hesitation during acceleration

• No control handoff artifacts

• Perfectly linear throttle response across the entire RPM range

The Result

Movement feels natural, predictable, and mechanically connected - exactly what an AXIAL SCX24 crawler demands when navigating technical terrain.

This is the difference between

“good brushless performance”

and

true crawler-grade sensored brushless control.

MicroPython Sensored ESC – Features

• True FOC (Field-Oriented Control)

• Live tuning via Furicar App

• Ultra-slow, ridiculously smooth throttle response

• New startup algorithm optimized for sensored operation

• Powerful BEC for demanding servos

• Micro size, ultra-lightweight

• Real-time telemetry up to 10Hz

• FREE lifetime firmware updates

MicroPython Sensored ESC Specifications

• Battery: 2–3S LiPo

• BEC: 5.5V / 7.4V – 5A

• Constant Current: 25A

• Burst Current: 50A

• Built-in power switch

• Size: 22 × 14 × 9.8 mm

• Weight: 7.6 g

MicroKomodo Sensored Outrunner – Features

• 12-Pole High-Torque Sensored Design

• Ultra-thin 0.2 mm stator laminations (low eddy losses)

• Japanese NMB ABEC-5 high-RPM bearings

• Precision-balanced rotor for maximum smoothness

• CNC-machined 6061-T6 aluminum heatsink can

• High-purity copper windings for efficiency & heat dissipation

Why Choose MicroModo SENSORED 2026

If you’re building an AXIAL SCX24 crawler and want absolute control at the slowest speeds, this is the system designed for you.

The MicroModo SENSORED 2026 replaces the limitations of sensorless brushless with true sensored precision, delivering the smoothest, most controllable Micro crawler power system Furitek has ever made.

MicroModo SENSORED 2026

True Sensored Outrunner Control. Zero Cogging. Built for AXIAL SCX24.

Extra Requirements

• A compatible two-channel radio system is required.

• The MicroPython ESC signal wire must be connected to Channel 2 (CH2) on the receiver for proper throttle control.
