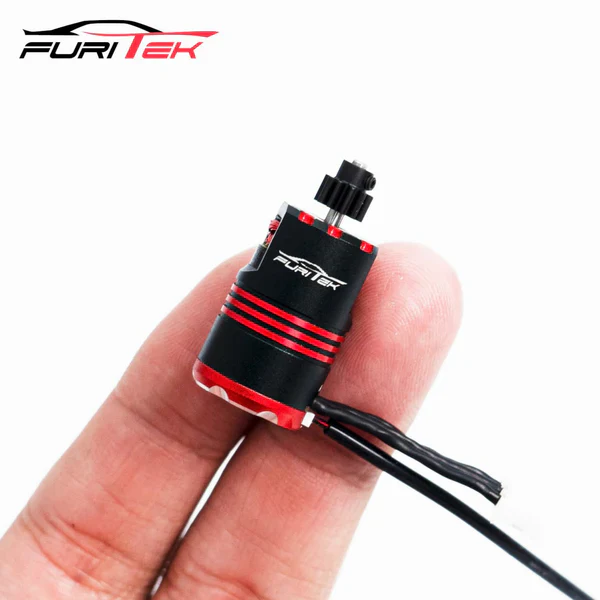

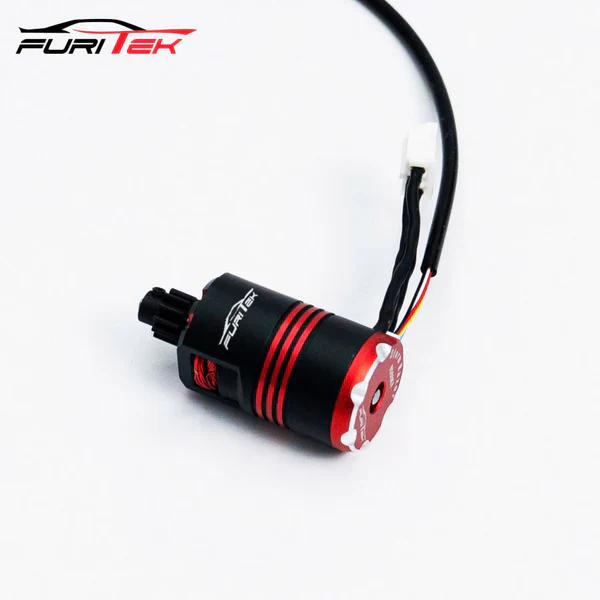

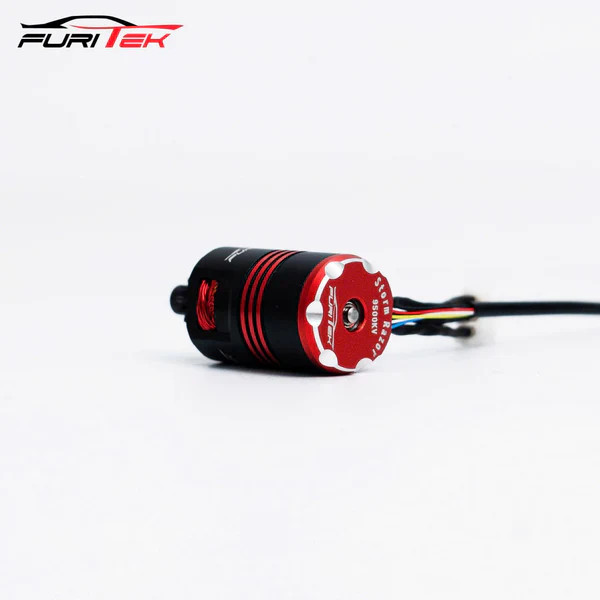

FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B

FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B

FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B

Motor Specifications:

  • Motor Type: Sensored
  • Motor Kv: 9500Ā
  • Battery: 2S
  • Resistance: 0.042ohm
  • Max Current: 8A
  • Slot/Pole: 12 slot/4 poleĀ
  • Shaft: 2*10mm

Motor Features:

  • Sensored 4-pole hi-torque motor design.
  • High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
  • Super thin stator laminations---lower eddy losses---maximizes efficiency. Japanese NMB --High RPM ABEC5 bearings.
    Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
  • Precision engineered for maximum energy conversion.

Pinion included:

  • Gear 0.5M-11T-Steel-Black
  • (A good 0.9mm allen key wrench toolĀ  is required )

Supports:

  • Ā 1/24 Micro-B 2WD Buggy RTR

$14.87

Original: $42.49

-65%
FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B—

$42.49

$14.87

Product Information

Shipping & Returns

Description

FURITEK STORM RAZOR 1524 9500kv 2mm shaft with 11T Steel pinion Sensored Brushless Motor FOR 1/24 Micro-B

Motor Specifications:

  • Motor Type: Sensored
  • Motor Kv: 9500Ā
  • Battery: 2S
  • Resistance: 0.042ohm
  • Max Current: 8A
  • Slot/Pole: 12 slot/4 poleĀ
  • Shaft: 2*10mm

Motor Features:

  • Sensored 4-pole hi-torque motor design.
  • High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
  • Super thin stator laminations---lower eddy losses---maximizes efficiency. Japanese NMB --High RPM ABEC5 bearings.
    Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
  • Precision engineered for maximum energy conversion.

Pinion included:

  • Gear 0.5M-11T-Steel-Black
  • (A good 0.9mm allen key wrench toolĀ  is required )

Supports:

  • Ā 1/24 Micro-B 2WD Buggy RTR
