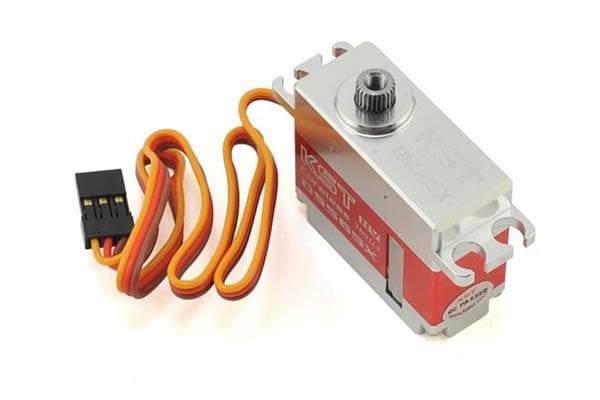

KST DS565X Mini HV Tail Servo For 450-500 Helicopters

KST DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X operates correctly.

Features:

• Mini size aluminum case
• Full metal gears
• Dual ball bearings
• HV compatible
• Lightning fast
• Coreless motor
• Narrow Pulse - 760uS - Helicopter Tail

Specifications:

Operating Voltage: 6-8.4V
Size: 35.5x15x32.7mm
Pulse Width: 760uS
Torque: 4.0kg.cm @ 6.0V; 6.0kg.cm @ 8.4V
Speed: 0.06sec/60° @ 6.0V; 0.04sec/60° @ 8.4V
Weight: 40g
Working Frequency: 760us/560Hz
Motor: Coreless
Ball Bearing: 2BB
