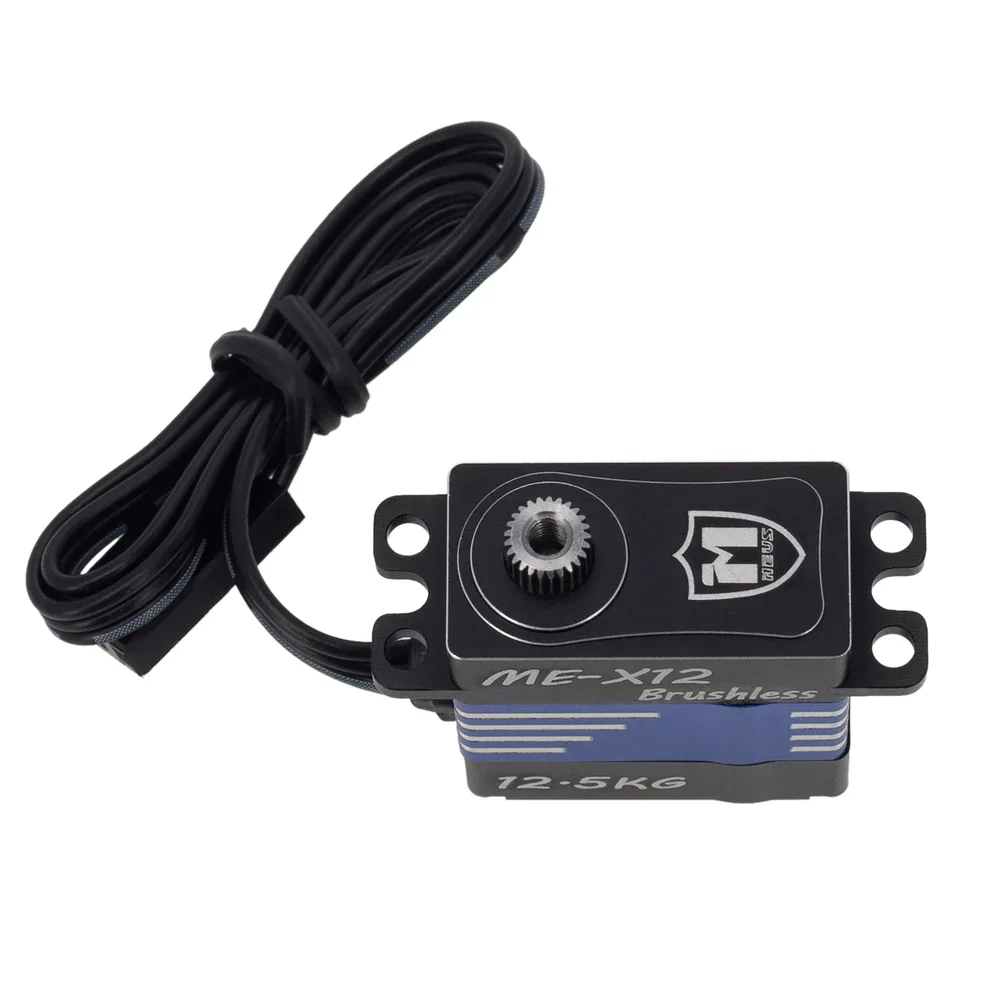

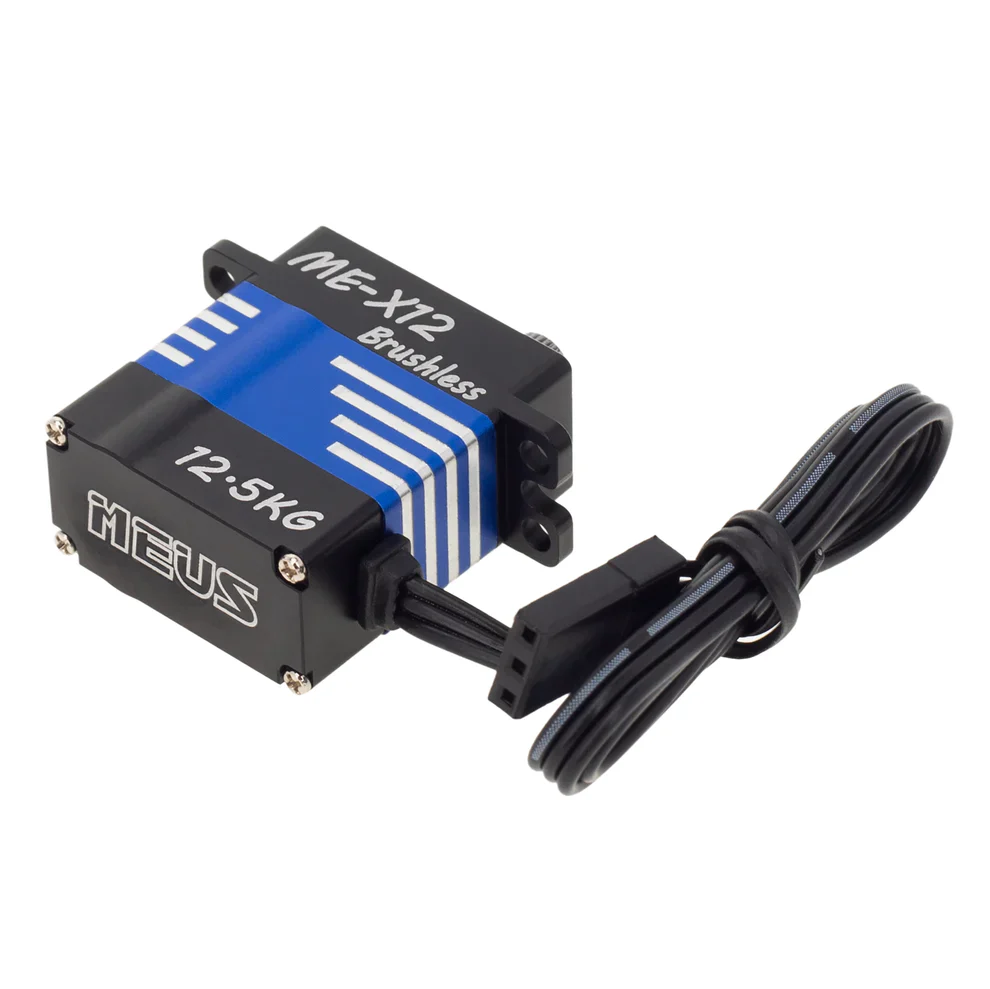

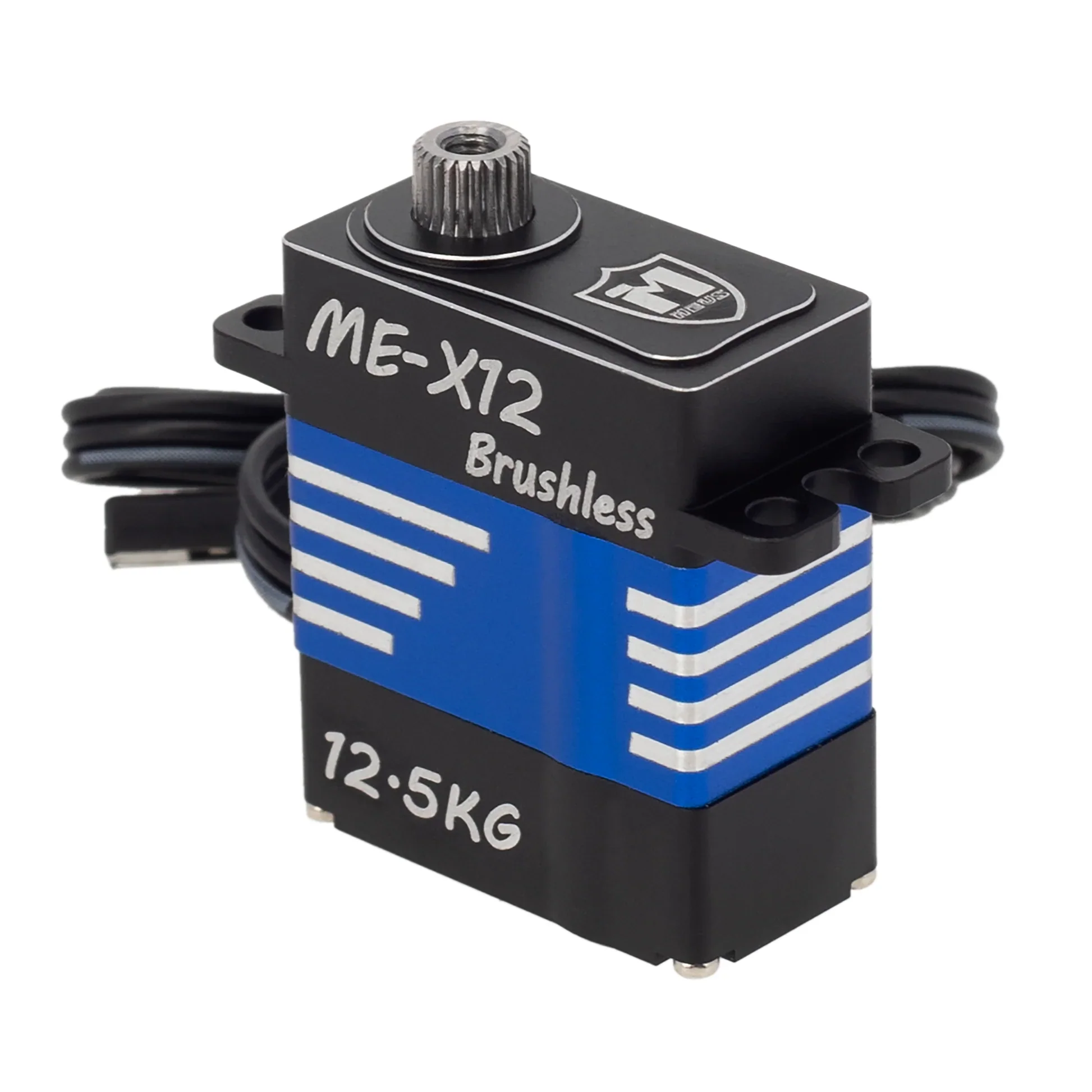

MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M
Description:Â
1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/10 and 1/8 models.
2. Brushless motor provides high speed response and high torque.
3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.
4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy and longer service life.

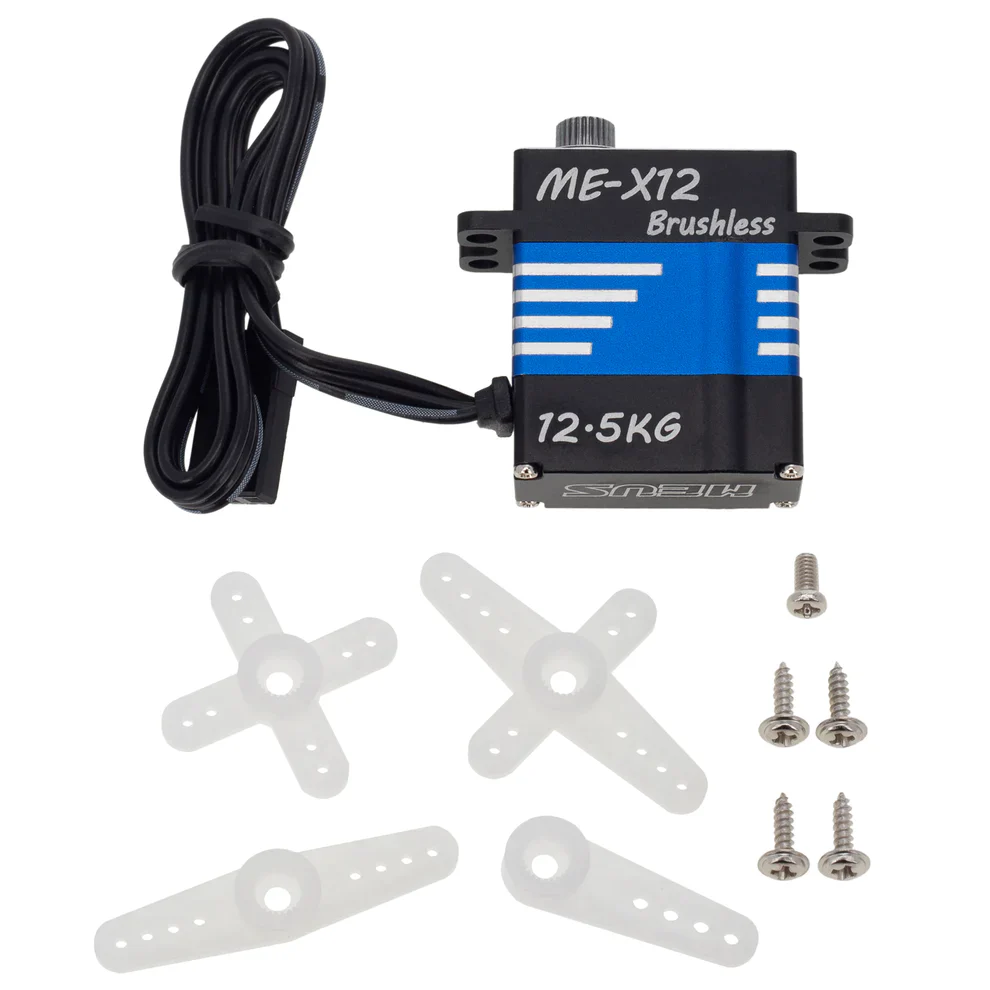

5. Package includes one 12.5KG servo. Comes in a color box package.
Product Number：ME-X12
Operating Voltage：4.8~8.4VDC
Max. Torque-6.0V：≥ 8 kg.cm
Max. Torque-7.4V：≥ 11 kg.cm
Max. Torque-8.4V：≥12.5 kg.cm
No Load Speed-6.0V：≦0.07sec/60°
No Load Speed-7.4V：≦0.06sec/60°
No Load Speed-8.4V：≦0.06sec/60°
Operating Travel Angle：180°+10°(500~2500 us)
Motor Type：Brushless motor
Horn Gear Spline：25T/∅4.90mm
Gear Set Material：Metal gear
Weight：21.6+ 0.5g
Size：23*12*27mm
$45.99
MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M—
$45.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Description:Â
1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/10 and 1/8 models.
2. Brushless motor provides high speed response and high torque.
3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.
4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy and longer service life.
5. Package includes one 12.5KG servo. Comes in a color box package.
Product Number：ME-X12
Operating Voltage：4.8~8.4VDC
Max. Torque-6.0V：≥ 8 kg.cm
Max. Torque-7.4V：≥ 11 kg.cm
Max. Torque-8.4V：≥12.5 kg.cm
No Load Speed-6.0V：≦0.07sec/60°
No Load Speed-7.4V：≦0.06sec/60°
No Load Speed-8.4V：≦0.06sec/60°
Operating Travel Angle：180°+10°(500~2500 us)
Motor Type：Brushless motor
Horn Gear Spline：25T/∅4.90mm
Gear Set Material：Metal gear
Weight：21.6+ 0.5g
Size：23*12*27mm
