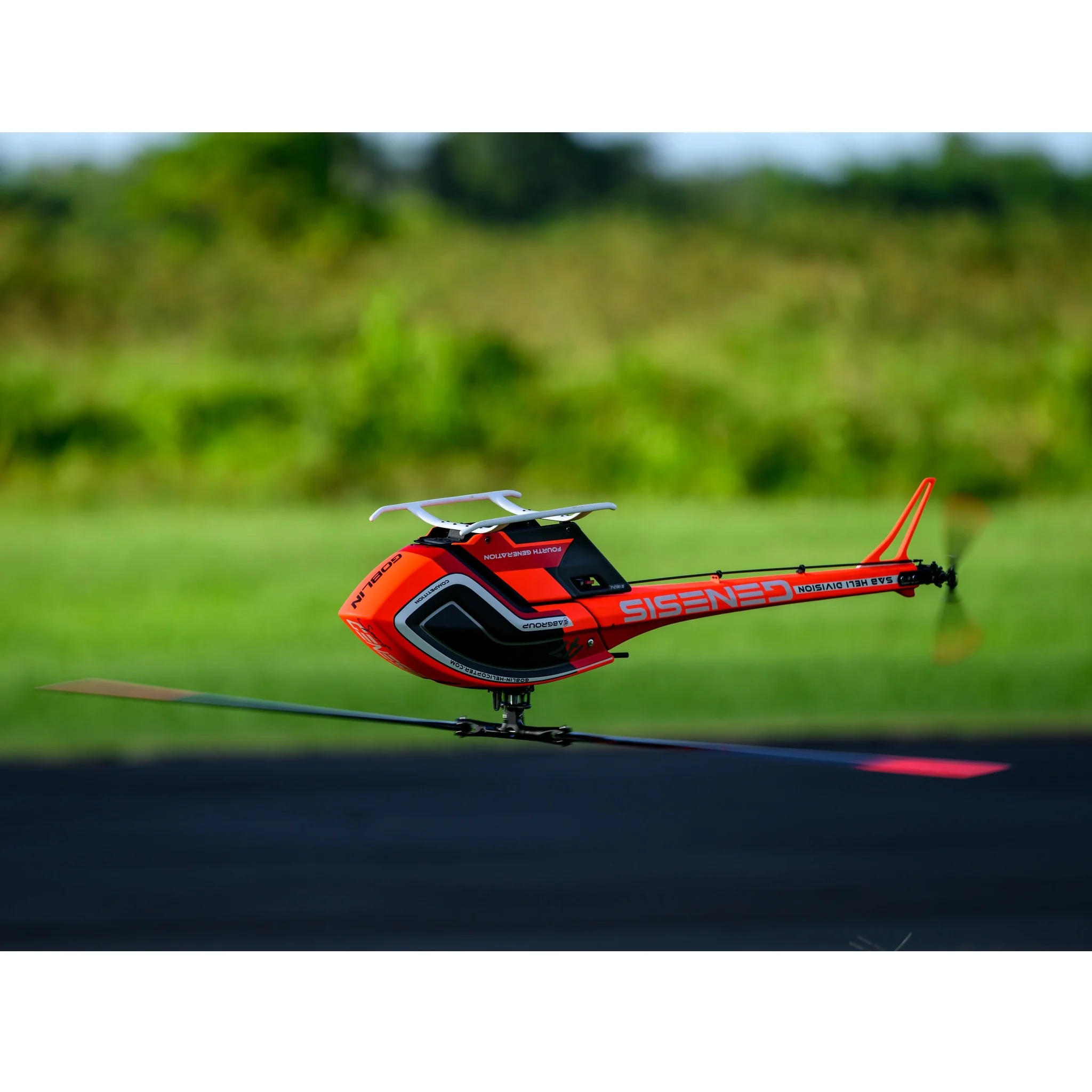

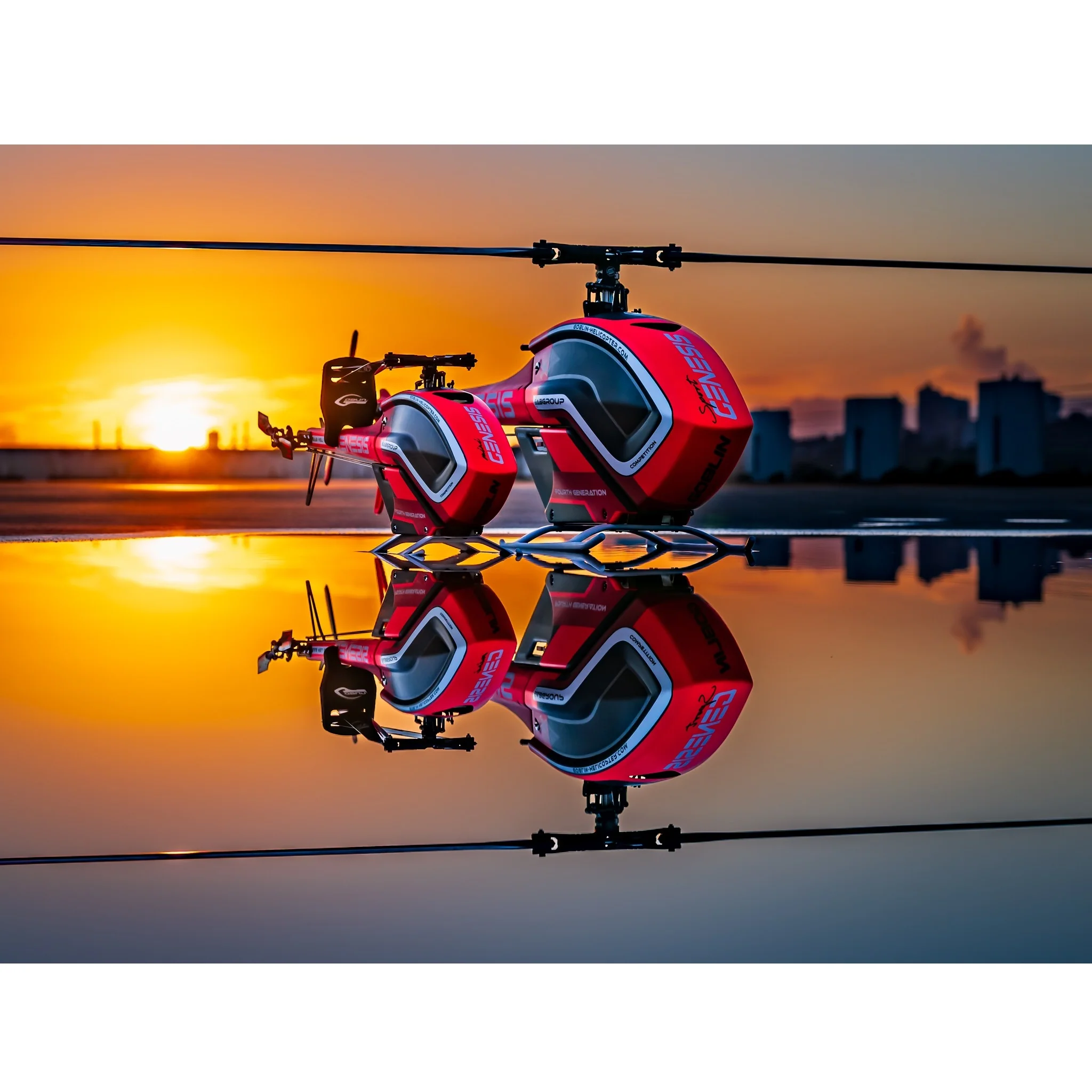

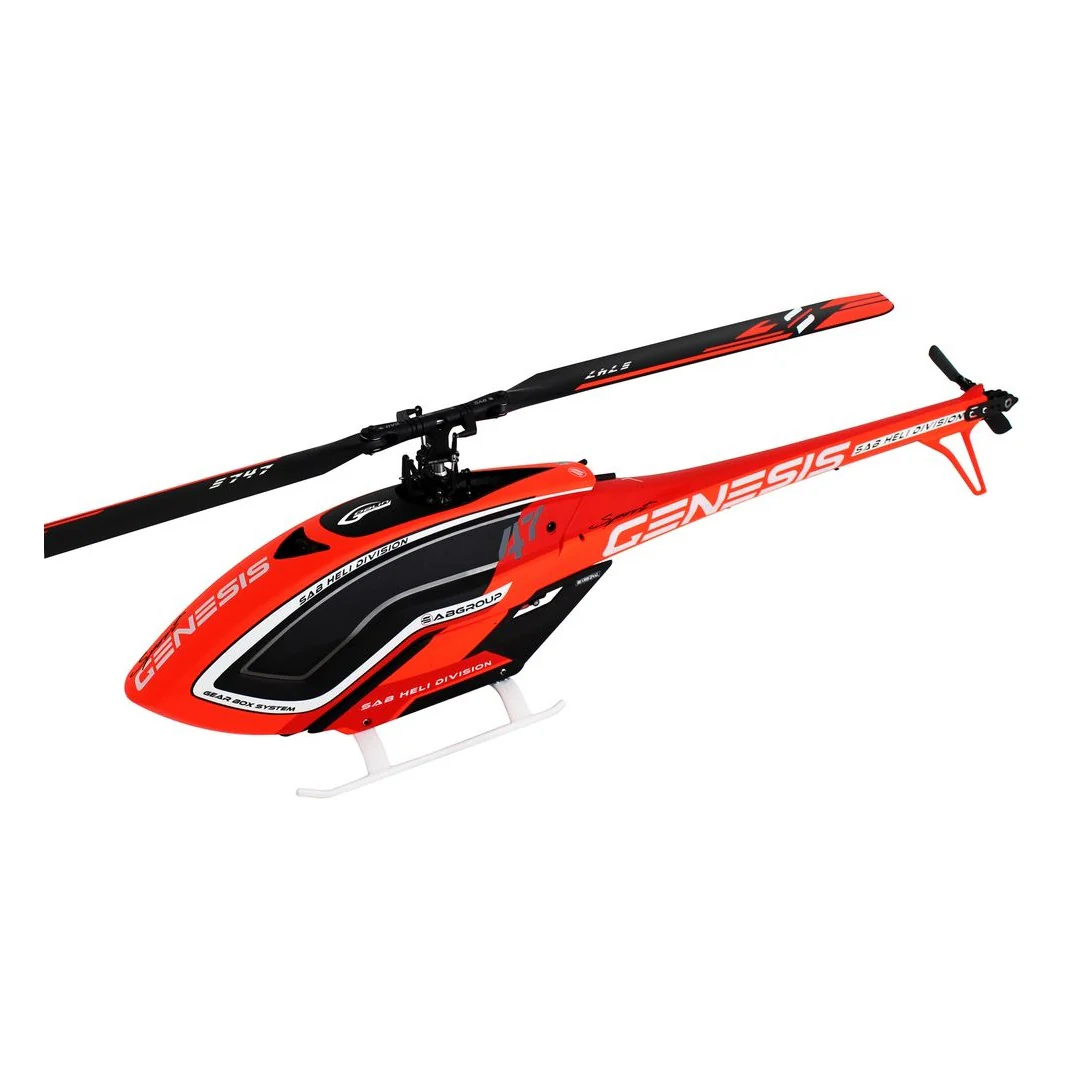

The new Genesis Sport is completely redesigned, offering several advanced features:
Transmission:
• Belt Drive: Ensures a very quiet and smooth transmission.
• One-Way Bearing: positioned directly on the main shaft for maximum smoothness during autorotation.
• 15 mm Main Shaft: Supported by two bearings assembled in a separate unit for ease of maintenance.
Rotor Head:
• New Design: Features 35 mm blade grip arms with a new locking system.
• Self-Centering Titanium Washers: Ensure automatic centering for greater precision.
• Pivot Option for Spindle: Fully configurable for rigidity and maximum movement.
Tail Rotor:
• 8 mm Tail Shaft with 8x16x5 bearings for significantly increased rigidity.
• Single-Piece Shaft and Hub: Made from a single piece for maximum precision.
• Double-Point Pitch Control Slider: Reduces play in the tail rotor control.
Tail Boom:
• Molded Carbon Fiber: Tail boom is molded carbon fiber and assembled directly to the main frame.
• Belt Tensioning System: Includes an indicator for tension force for optimal control.
Canopy and Blades:
• Rear Battery Insertion: Batteries are inserted from the rear with integrated connectors.
• No Canopy Removal Needed: Canopy does not need to be removed for battery changes.
• The kit includes new S747-O main blades and the new S110-O tail blades.
The Genesis Sport offers advanced features that make it an excellent choice for both competition and demanding RC helicopter enthusiasts.
Specifications:
AIRFRAME weight: 2584 gr (no blades, no battery, no electronics)
Main rotor diameter: 1670 mm (with 747 mm main blades)
Main blade length: 690 to 760mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 110 to 115 mm
Cyclic Servos: Standard size 40mm
Tail Servo: Standard size 40mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1).
Tail Rotor Ratio: 5.1 - 4.9:1 (26T includes 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Molded carbon tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
KIT Includes:
• 21T motor pulley (other pulley sizes available).
• 2 battery trays with integrated connectors.
• S747 Orange (747 mm main blades)
• S110 Orange (110 mm tail blades)
