TORQ BLS2208-Black Edition Full Size HV Brushless Servo

TORQ BLS2208- Black Edition Full Size HV Brushless Servo - Epic Power.

Ultimate Precision.

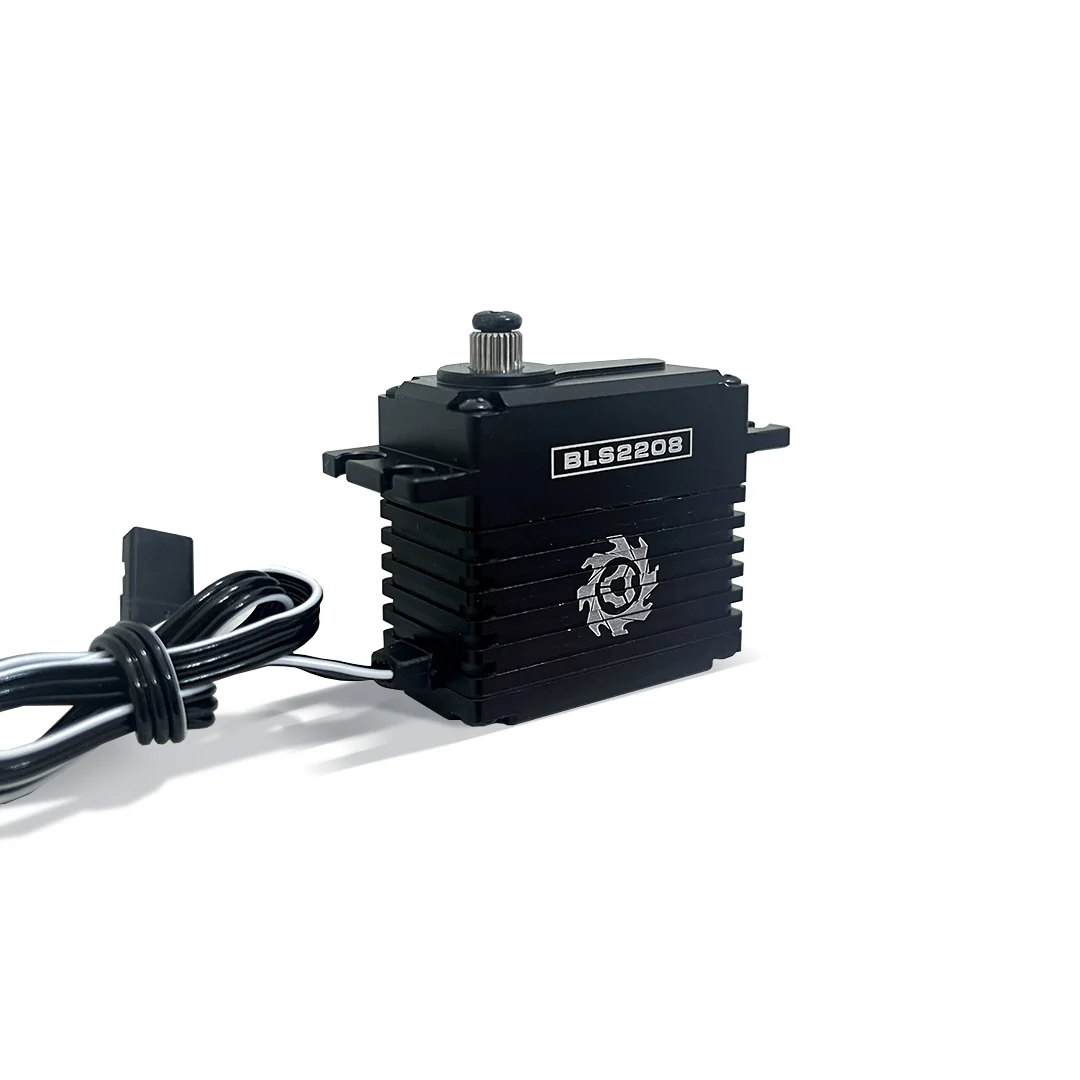

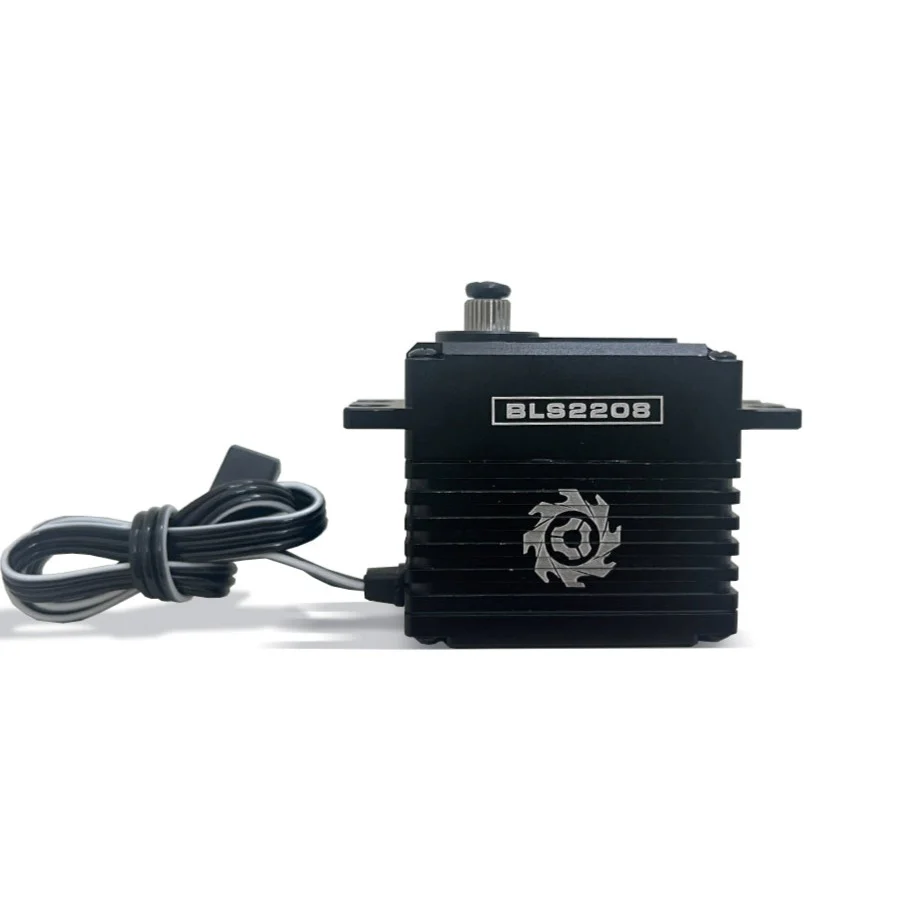

Explore new worlds of precision & power with the TORQ BLS2208-BE Full Size HV Brushless Servo. Harnessing the precision and performance of brushless motor power, the TORQ BLS2208-BE Full Size HV Brushless Servo offers up crushing levels of torque, paired with ultra precise control for high performance helicopter, airplane and jet based applications.

Engineered for intense levels of abuse with blistering speed and performance, the TORQ BLS2208-BE Full Size HV Brushless Servo is encased within a finned CNC aluminum heat dissipating case, and constructed of high strength 6061 aircraft grade aluminum. Perfectly suited for an array of high performance RC applications, the TORQ BLS2208-BE Full Size HV Brushless Servo has been purposefully designed to thrive within the most hostile flight regimes, offering superior levels of tactile control that can be seen and felt throughout the flight.
Designed to absorb true high voltage power, the TORQ BLS2208-BE Full Size HV Brushless Servo is built for a beating, incorporating a steel gear train for maximum levels of abuse. Paired with a dual ball bearing layout for butter smooth operation, the TORQ BLS2208-BE provides unparalleled levels of finite control, offering next level precision with every flight you take.

Step up to epic levels of high performance capability with the TORQ BLS2208-BE Full Size HV Brushless Servo. Brushless power & performance with the ultimate in precision and control.

Features:
- Brushless Motor Technology for the Ultimate Power & Control
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- Dual Ball Bearing Construction

Speed:
0.07 sec / 60° @ 8.4V
0.08 sec / 60° @ 7.4V
0.09 sec / 60° @ 6.0V

Torque:
25Kg.cm / 347.18 oz in. @ 8.4V
22Kg.cm / 305.52 oz in. @ 7.4V
18Kg.cm / 249.97 oz. in. @ 6.0V

Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Weight: 78g
Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

Servo Grommet is suggested use if you use our servo on Nitro Heli.
