TORQ Servo Combo for J10

TORQ Servo Combo for J10

TORQ Servo Combo for J10 Jet

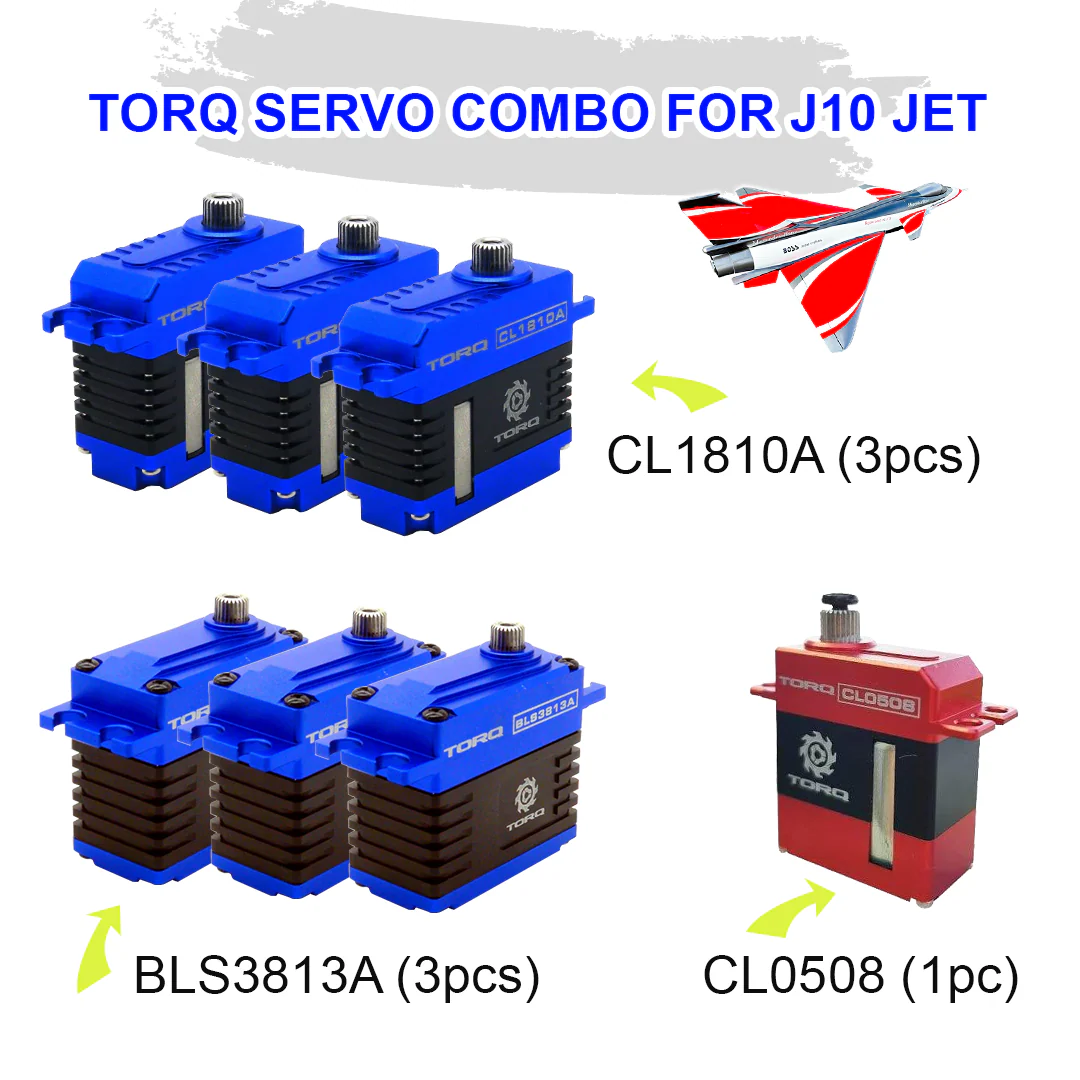

Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for J10 Jet enthusiasts. This combo includes 3 pcs*TORQ CL1810A servos, 3 pcs*TORQ BLS3813A servos and 1 pcs*CL0508, ensuring optimal performance for your high-speed jet.

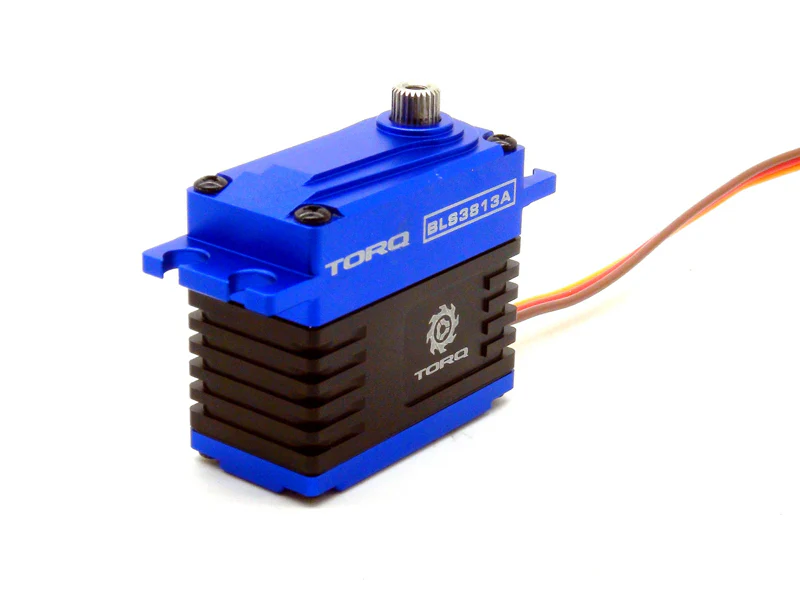

1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (3pcs)

Operating Voltage: 6.0 ~ 8.4 DC Volts
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm

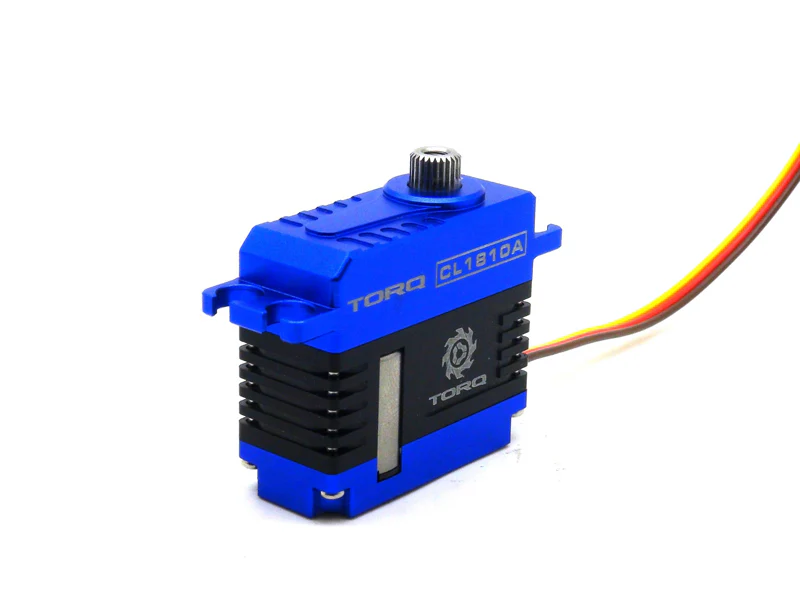

2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (2pcs)

Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: [email protected], [email protected], [email protected]
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃

3. TORQ CL0508 Micro HV Servo

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)

$242.90

Original: $694.00

-65%
TORQ Servo Combo for J10—

$694.00

$242.90

Product Information

Shipping & Returns

Description

TORQ Servo Combo for J10 Jet

Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for J10 Jet enthusiasts. This combo includes 3 pcs*TORQ CL1810A servos, 3 pcs*TORQ BLS3813A servos and 1 pcs*CL0508, ensuring optimal performance for your high-speed jet.

1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (3pcs)

Operating Voltage: 6.0 ~ 8.4 DC Volts
Torque: [email protected] / [email protected] / [email protected]
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm

2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (2pcs)

Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: [email protected], [email protected], [email protected]
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃

3. TORQ CL0508 Micro HV Servo

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
