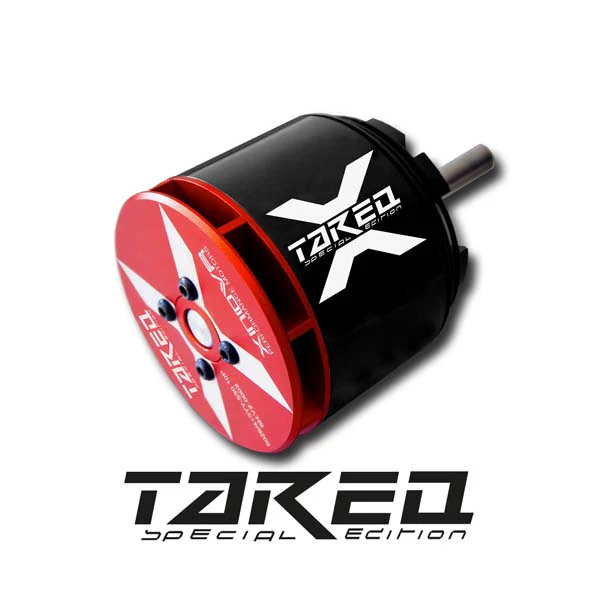

Xnova TAREQ Edition 50xx-530KV Brushless Outrunner Motor Shaft A

Xnova TAREQ_special_edition  brushless high performance outrunner motor designed for 12S and 14S absolute crazy power 3D flying, from 700 and up to 800mm size helicopter where highest power to weight ratio is important. One of the most powerfull motors currently available. Please visit ESC setup advices on our page for help in setting your ESC.

• High quality Neodym Magnets. Heat resistant up to 180 degrees C.
• Specialized wires,heat resistant up to 300 degrees C.
• Precisely balanced.
• High performance sheet metal stator.
• High quality NMB bearings.

• Market leading effiency up to 93%.
• Cooler running.
• Superb quality and machining of CNC parts.
• Improved torque and power output.
• Handwound YY single strand wire

Slots & Poles	12s10p
Winding T	YY
rpm/V	530
Volt (V)	20 | 40 | 45
Io(A)	4.5 | 7.5 | 8.1
Rm (mohm)	6.2| 6.2 | 6.2
Weight (without connector) (g)	640
Body Length (no shaft) mm	61.5
Diameter (mm)	63
Shaft Length (mm) (Details pictures)	| 32 | 61
Shaft Dia. (mm)	8 |
Mounting Holes CTC Distance (mm)	30
Mounting Screw	M4
Max Eff. Curr. A	120.48 | 219.97
Max Eff.	92.67 | 93.30
Kt (Nm/A	0.0180
Km (Nm/sqrt(w))	0.2288
Max Continuous Power(Watts)	8000
Peak Continuous Power(Watts) (5 sec)	13000 (5sec)
