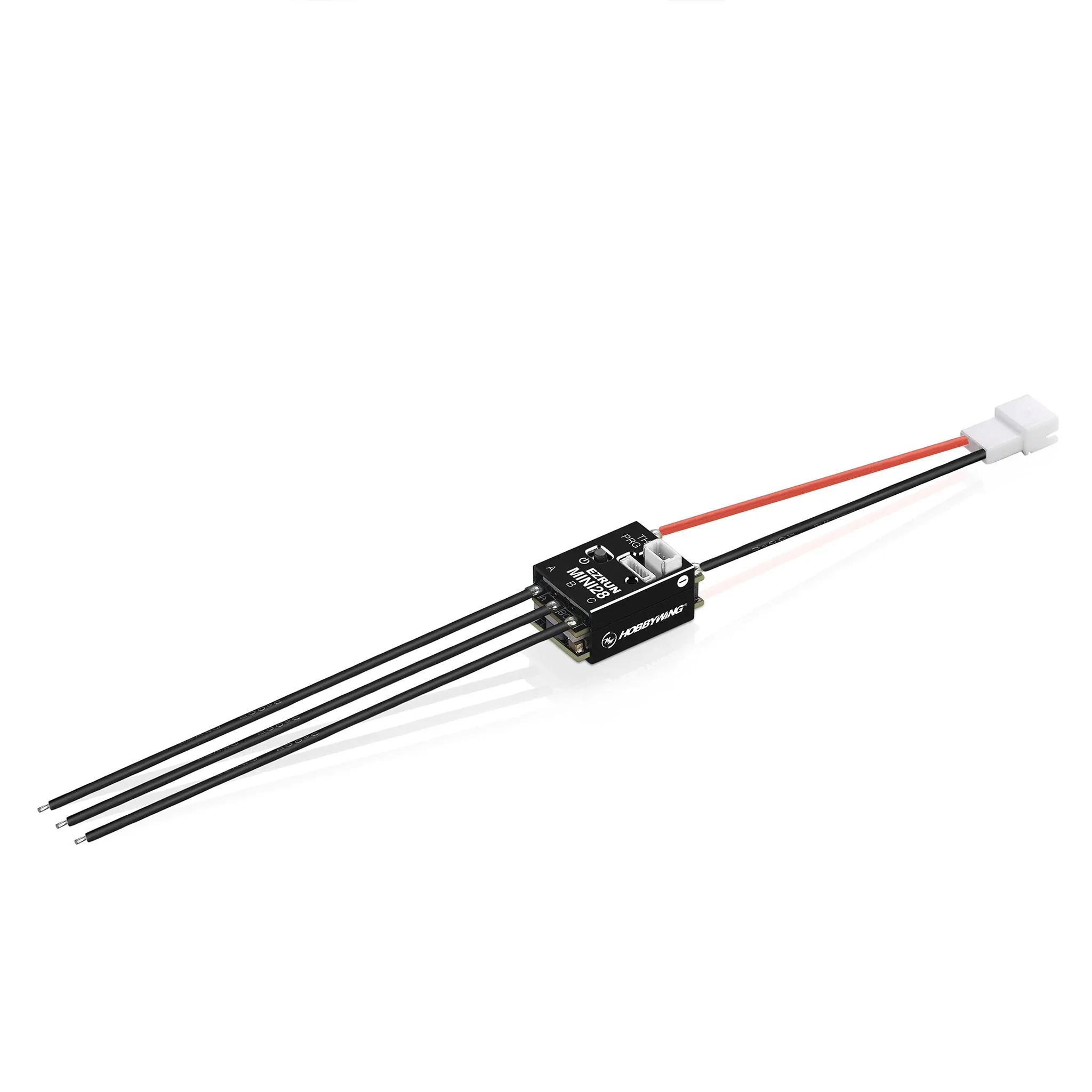

HobbyWing EZRUN Mini28 ESC

Specifications:

Product Title	EZRUN Mini28 ESC
Part number	30101300
Technology	Brushless Sensored
Waterproof	No
Cont./Peak Current	30A/80A
Input Voltage	2S Lipo
BEC Output	6V/7.4V @Max 3.5A
Wires & Connectors	Input Wires: 20AWG-55mm * Output Wires: 22AWG-80mm *
Size & Weight	22.7x14.2x11.8mm | 5g (without wires)
Applications	Motor: 1626 Size Motors Vehicle: 1/28th&1/27th
ESC Programming	LCD G2 Program Box OTA Programmer Throttle Wire
Firmware Upgrade	Supported
Manual download	> User Manaual Ezrun Mini28th (PDF)
Product Brochure	> Ezrun Mini28 Leaflet-en

* All the wire length above is the original length not the length you see from the outside.
